Touch Screen Panel 5 Inch Resistive AA1031-5

Touch Screen Panel 5 Inch Resistive AA1031-5

€22,00 EUR
€22,00 EUR
Sale Sold out

Color: Transparent

Products Status: New

Type: Resistive

Size: 5 Inch

Touch points:: 2 to 10 Points

Touch controller:: EETI/ILITEK

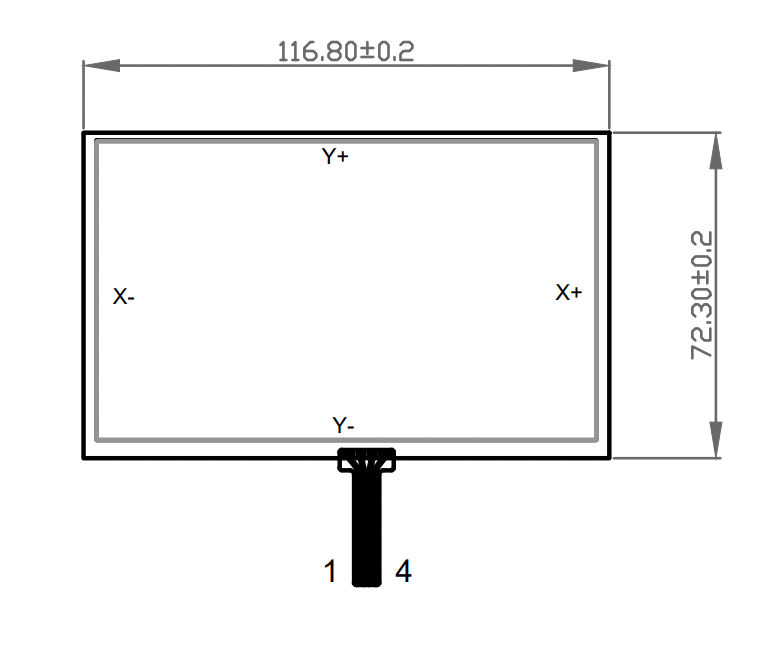

Dimensions: 116,80 x 72,30

Note：

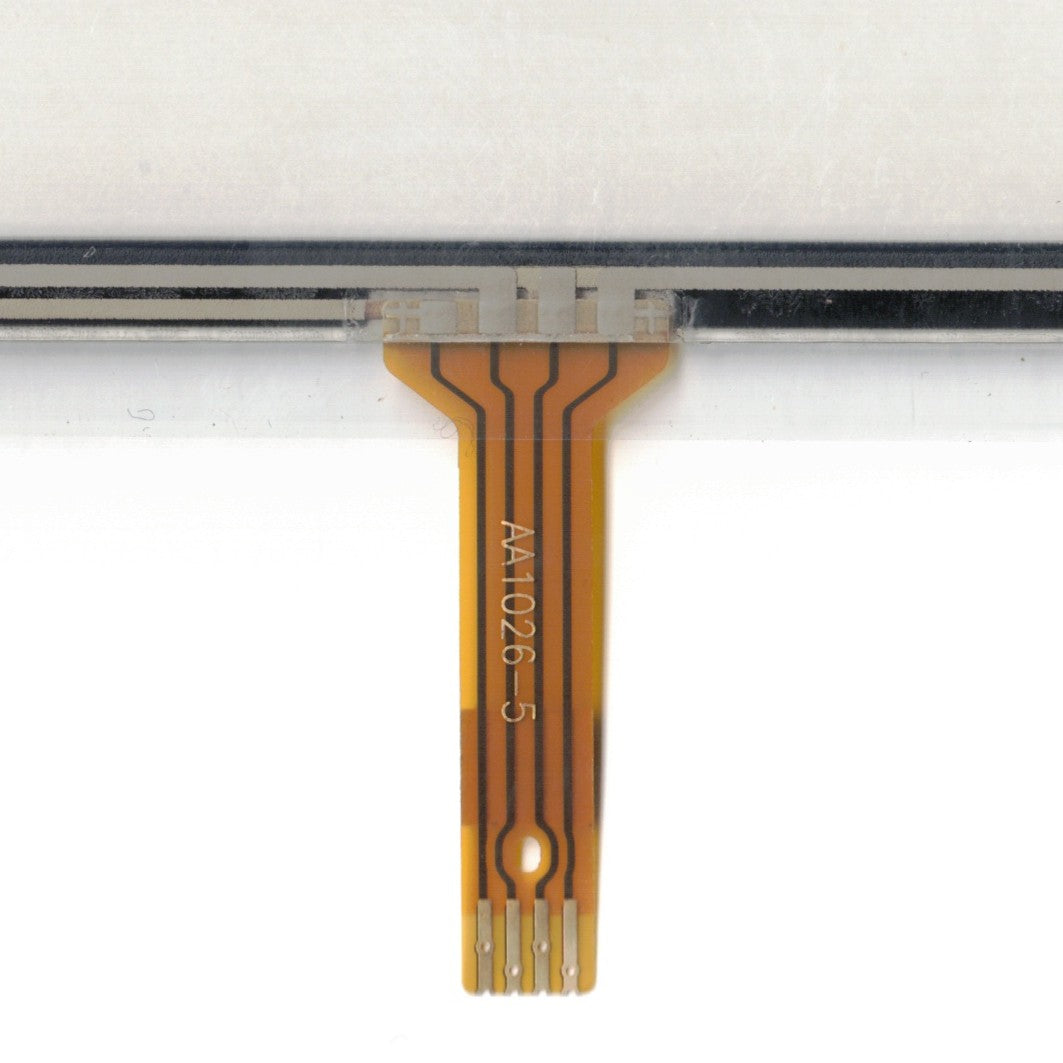

  1. Construction：film+glass+tail ITO film:Glare anti-newton ring 500Ω/□ (0.188mm) ITO glass:500Ω/□ (0.7mm) tail:FPC (pitch=1.0mm)
  2. Thickness：1.0±0.15
  3. Max voltage：DC3-15V 1mA
  4. Insulation resistance：≥20MΩ(25V DC)
  5. Linearity：≤1.5％
  6. Optical characteristics：≥78％
  7. Operation force：60-100g
  8. Tapping durability：≥1,000,000次
  9. Pen sliding durability：≥100,000次
  10. Operating temperature & Humidity：-20℃~+70℃ ，≤90%RH，
  11. Storage temperature & Humidity：-30℃~+80℃，≤90%RH
  12. Hardness:3H
  13. Chattering Time:<10ms,
  14. Terminal resistance:X:200-1000Ω,Y:200-900Ω
  15. TOLERANCE±0.20mm

If the product is unavailable or you want to order a larger quantity, please contact us directly for a quote
